Focus on LiFePO4 Battery Manufacturing for 17 Years

<
>

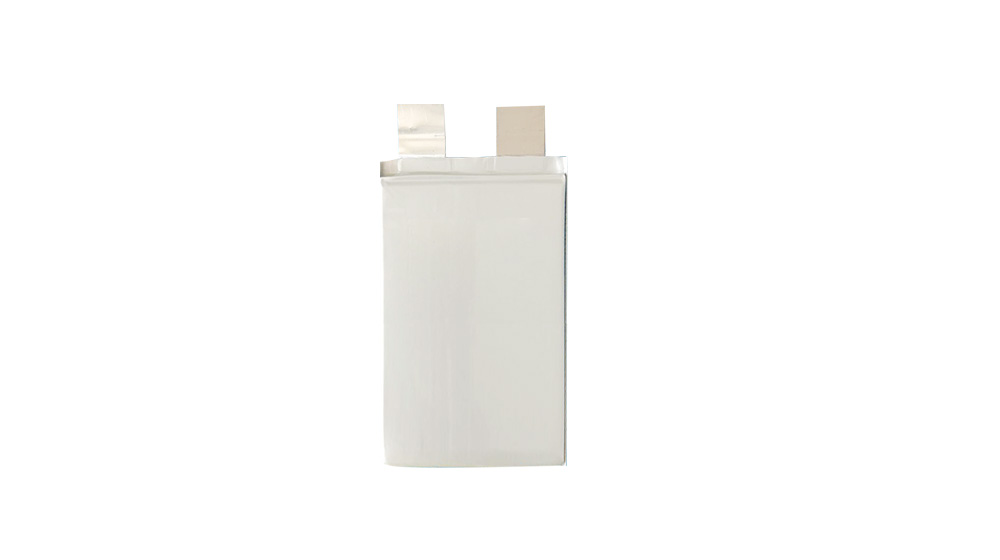

NCM Pouch cell

Topband battery has core battery technology, exquisite battery technology, high-quality raw material formulation and strict production quality control system.

,,

Consult Immediately Specifications

LFP Pouch cell

Product Design Concept

Topband battery has core battery technology, exquisite battery technology, high-quality raw material formulation and strict production quality control system, forging the outstanding performance of Topband pouch cell battery, which is widely used in automobiles, motorcycles starting power,vehicle models and special starting power.

Software cell technology
Topband integrates the battery industry chain and provides users with lithium iron phosphate batteries with high energy density through independent research and development and production of cathode materials and batteries.

Flexible design

High safety

High energy density

High discharge rate

Small internal resistance

Fast charging and discharging

charging efficiency up to 100%.

Applications

The products are widely used in motorcycle starting, Scooters, Drones and Electric tools, etc


TECH & SPECS
  • Item/Model
  • TB-5Ah-NCM
  • TB-20Ah-NCM
  • TB-30Ah-NCM
  • Nominal Voltage
  • 3.7V
  • 3.8V
  • 3.8V
  • Nominal Capacity
  • 5Ah
  • 20Ah
  • 30Ah
  • Standard charging Current
  • 15A
  • 60A
  • 120A
  • Standard discharge Current
  • 40A
  • 120A
  • 120A
  • Max. discharge Current
  • 100A
  • 400A
  • 300A
  • Cycle life
  • ≥600
  • ≥600
  • ≥600
  • Internal resistance
  • ≤2.5mΩ
  • ≤1.5mΩ
  • ≤1.0mΩ
  • Weight
  • 105g±5g
  • 398g±10g
  • 570g±10g
  • Dimension(L*W*H)
  • 8.5*65*105mm
  • 8.6*105*212mm
  • 12*105*212mm
